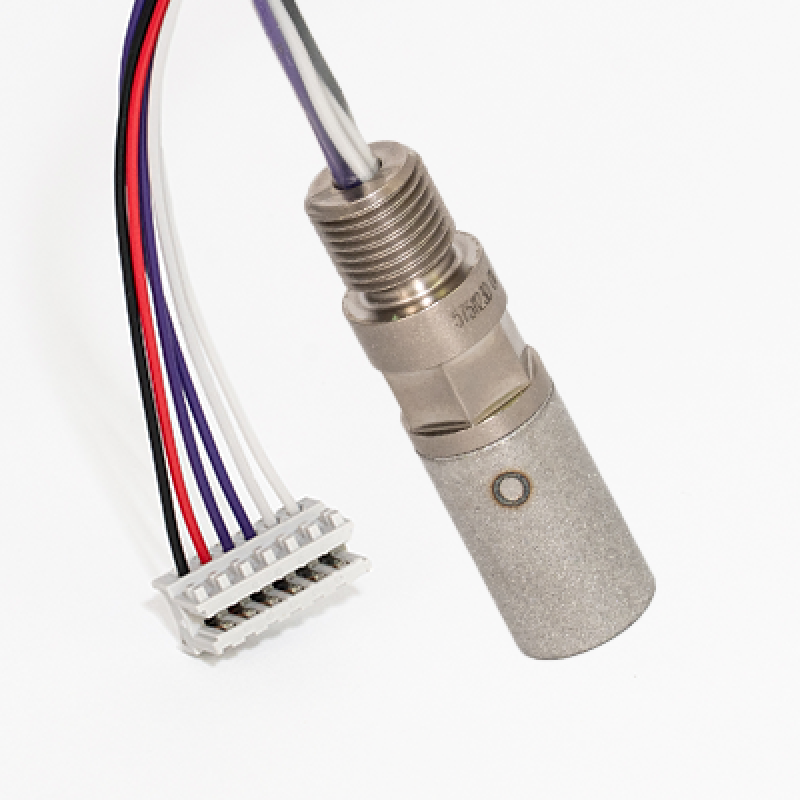

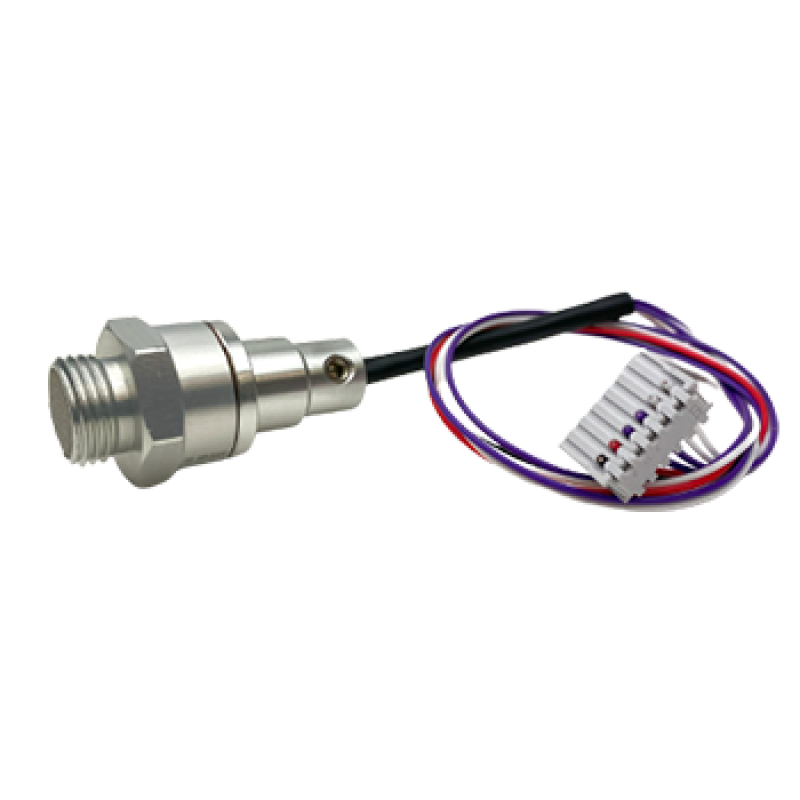

SO-D0 M16 Thread Oxygen Sensor

Details

• Zirconia (ZrO₂) electrochemical sensor for accurate oxygen measurement
• Wide measurement range from 10 ppm to approximately 96% O₂ full scale
• Stable, linear response across the complete oxygen measurement range
• Reliable output signal under changing temperature conditions
• Minimal cross-sensitivity to non-oxygen gases
• Single-point calibration designed to remain valid throughout the sensor’s operating life
• M16 × 1.5 threaded housing provides secure installation within process connections
• Surface temperature remains below 70°C during operation
• Optional external electronic control board provides standard analogue or digital outputs
• Negligible pressure influence under normal atmospheric conditions

More InformationDatasheet
