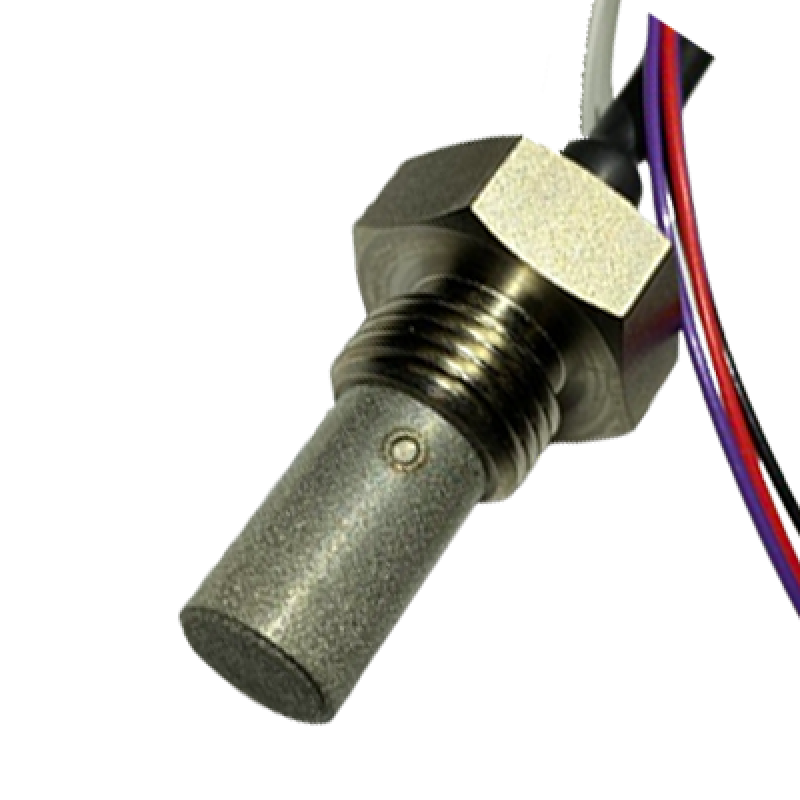

SO-D1 Oxygen Sensor M10 Thread

Details

• Zirconia (ZrO₂) oxygen sensor with a compact M10 × 1 threaded probe
• Wide oxygen measurement range of approximately 1–96% O₂
• Stable, linear response across the complete measurement range
• Consistent sensor output under changing temperature conditions
• Minimal cross-sensitivity to other gases
• Designed to retain its calibration throughout its operating life for stable, low-maintenance performance
• Compact M10 threaded housing enables straightforward installation
• Operating surface temperature below 70°C
• Optional electronic interface board provides standard analogue or digital outputs
• Negligible pressure influence under normal atmospheric conditions

More InformationDatasheet
